I recently sewed this shirt (le 604 from DP Studio) and it has quickly become a firm favourite. The fabric is Liberty silk chiffon and is gorgeous to wear – I am an official addict of this fabric, and looking forward to cutting into another gorgeous piece that I have!

Sewing DP Studio Le 604 Shirt

As you can see by the technical drawing of this shirt, there are a lot of intricate details – however the sewing instructions are not quite so intricate! There is nothing wrong with the instructions, rather this pattern is rated experienced and presumes a certain level of sewing knowledge. While sewing my shirt I thought I might elaborate on some steps, like the front dart and tucks, the front band, and those ever-so-cute sleeve ruffles! So here goes:



1. Sewing the Tucks

I started at the outer tuck next to the dart and worked towards the centre. But first the front dart needs to be sewn, and I french seamed mine. This is one of my favourite techniques for sheer fabrics, resulting in a strong stable dart that is discreet in appearance. Once all the tucks were sewn, I pressed the dart towards the centre front so it was hiding directly behind the outer tuck:

Sewing Dart on DP Studio Le 604 Shirt

I mark only the foldline of the tucks – at the top with a notch, and at the bottom with a pin or chalk dot. If the front edge is accurately cut and perfectly on grain, then each tuck will be on grain too as they are parallel. During sewing, I give the fabric a gentle pull towards me occasionally, so it becomes taut and folds automatically on grain. I never pre-press the foldline, as fixing it in place with the iron before sewing makes more difficult to make these minor adjustments at the machine.

Before sewing it is best to measure the pattern to check the intended width and spacing of each tuck. For this pattern, each tuck is 5mm when folded. Every time a tuck is made, there is a slight take up of extra cloth, so the secret is to sew the tuck at a scant 5mm. If you don’t, and especially with this number of tucks, you could easily lose 1-2cm across the front of your garment – leaving less room for your bust!

Sewing Tucks on DP Studio Le 604 Shirt

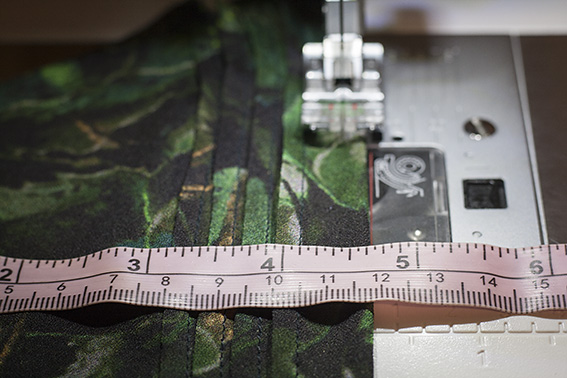

The tucks also need to be evenly spaced. I usually sit at the machine with my tape measure around my neck, measuring the space between the folds as I sew. For this pattern there is 20mm between each foldline, so I periodically check that as I sew.

Pressing Tucks on DP Studio Le 604 Shirt

After sewing each tuck, I first pressed it flat in the same position it was sewed, then pressed it to the side.  I didn’t press below the tucks, preferring them to release in soft folds. Note that each tuck gets 6mm longer as they near the centre.

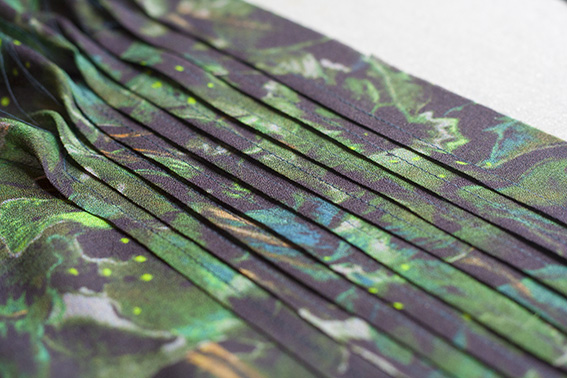

Tucks on DP Studio Le 604 Shirt

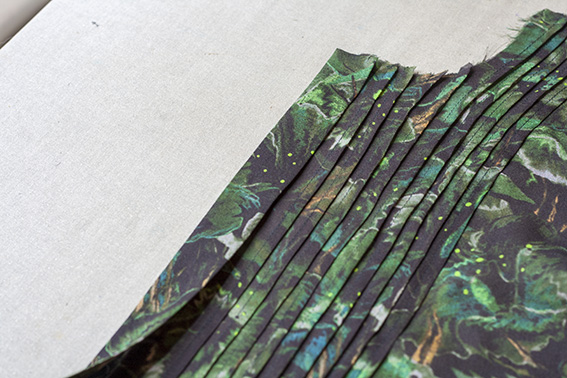

Ideally you should end up with a 2.5cm gap between the last tuck and the front edge. This is quite important when you come to sew the front bands as you will see next.



2. Sewing the Front Band

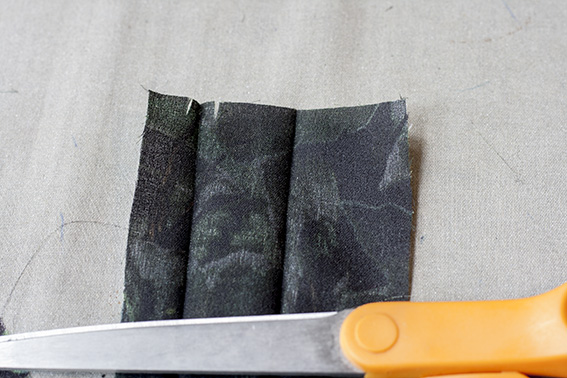

I pressed two folds in the front band before sewing it. The first was 1.5cm from one long edge, so those two notches in the photo below met. These notches denote the band topstitching line by the way.

Sewing Front Band on DP Studio Le 604 Shirt

Press a second fold so that the other long edge extends out from the first fold by 5mm:

Sewing Front Band on DP Studio Le 604 Shirt

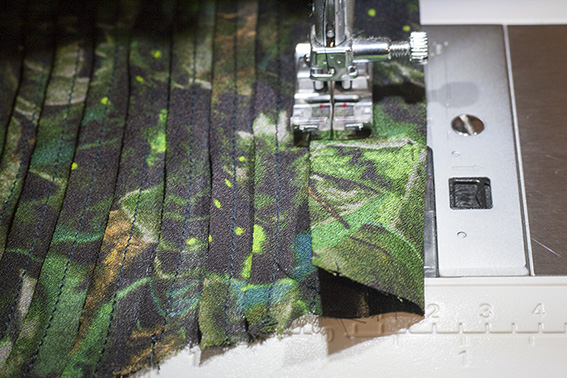

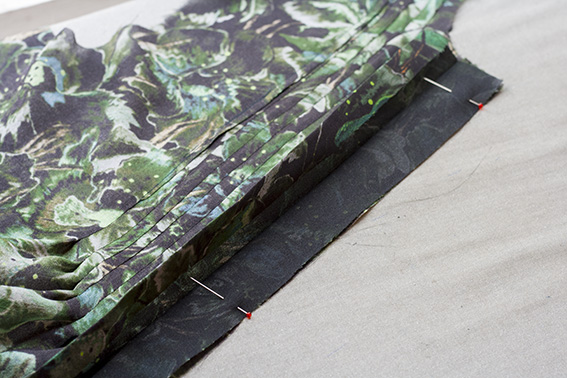

This extended edge is sewn to the Front, right side of band to wrong side of Front:

Sewing Front Band on DP Studio Le 604 Shirt

Press the seam allowance towards the band:

Sewing Front Band on DP Studio Le 604 Shirt

Fold the band over the seam allowance. It will extend past the previous stitching by 5mm:

Sewing Front Band on DP Studio Le 604 Shirt

Topstitch the band down at 5mm, this way the band gives the illusion of another tuck:

Sewing Front Band on DP Studio Le 604 Shirt

When buttoned, the edge of the buttonhole band meets the topstitching line of the button band underneath, giving a rather neat finish as you can see below:

DP Studio Le 604 Shirt Pattern Scissors Cloth





3. Sewing the Back Yoke

The back yoke is cut twice and both pieces were fused, so a lightweight fusing is necessary here. I highly recommend blockfusing – the resulting accuracy is important for sewing around those curves and getting the two layers to match evenly.

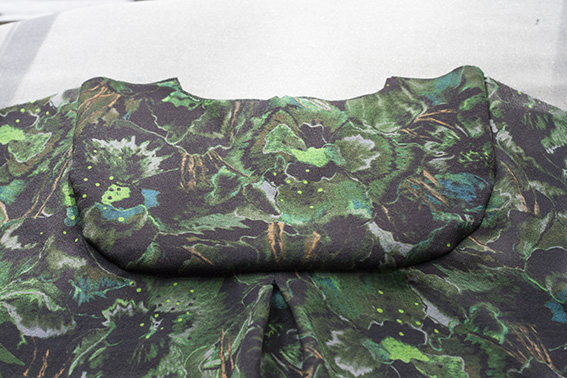

Sewing the Back Yoke DP Studio Le 604 Shirt

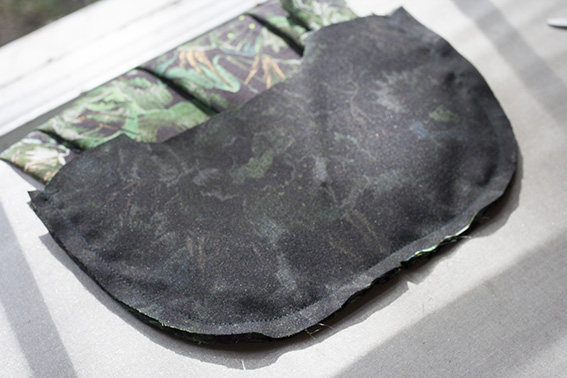

I sewed the outer yoke to the back first, taking care to match all notches, then I sewed the inside yoke in the same line of stitching:

Sewing the Back Yoke DP Studio Le 604 Shirt

Notch the corners to eliminate bumps and enable smooth curves once the yoke is turned through:

Sewing the Back Yoke DP Studio Le 604 Shirt



4. Sewing the Shoulder Ruffles

This is the part where I wasn’t sure exactly what to do, so I zoomed in close on DP Studio’s images and used a bit of creative license – it seemed to work!

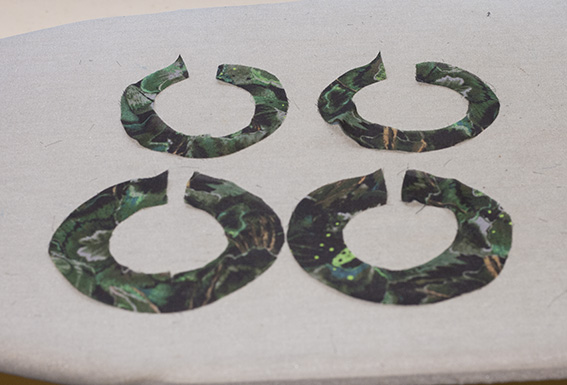

There are four pieces to each ruffle, two large and two small:

Sewing Sleeve Ruffle DP Studio Le 604 Shirt

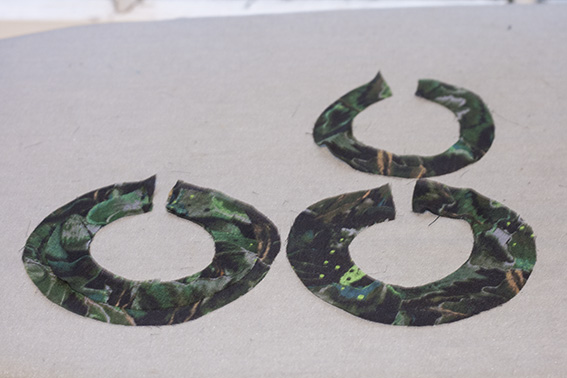

With right sides facing up, lay one small one on top of a large one, aligning the centre rim:

Sewing Sleeve Ruffle DP Studio Le 604 Shirt

Lay another small one on top, but turning it over so it lays right side down:

Sewing Sleeve Ruffle DP Studio Le 604 Shirt

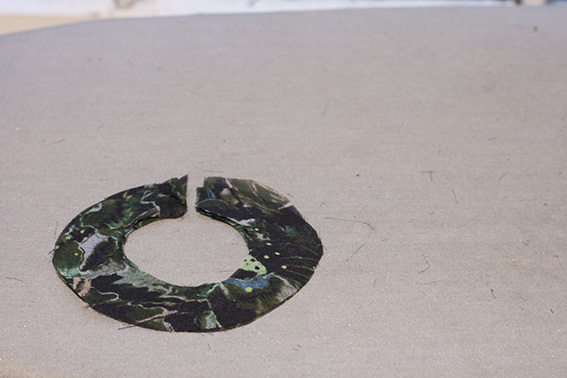

Follow with the final large piece, turning it over so it lays right side down too:

Sewing Sleeve Ruffle DP Studio Le 604 Shirt

The two lower circles are right side up, the two upper circles are right side down, with the two small ones sandwiched in the middle.

Sewing Ruffles on DP Studio Le 604 Shirt

Next I sewed all four layers together along the inner circular edge at 6mm, and pressed the seam open with the tip of my iron. It was kind of tricky, and the flounces looked quite irregular, but I decided that was part of the appeal 🙂

Sewing Ruffles on DP Studio Le 604 Shirt

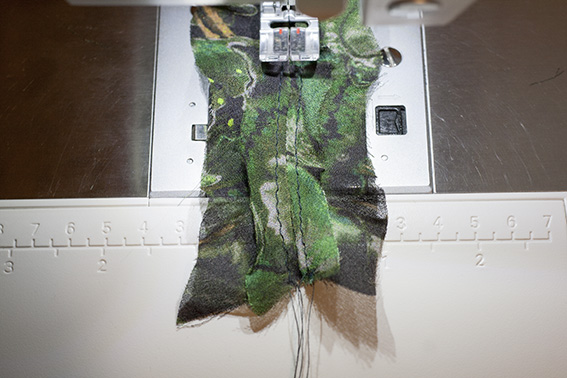

Next step was to gather the seamline to form the ruffle. Holding it open with pins, I sewed a row of gathering stitches either side of the seam:

Sewing Ruffles on DP Studio Le 604 Shirt

pulled up the threads and voila:

Sewing Ruffles on DP Studio Le 604 Shirt

Am I the only one having visions of The Very Hungry Caterpillar?!



5. Sewing the Sleeve Head

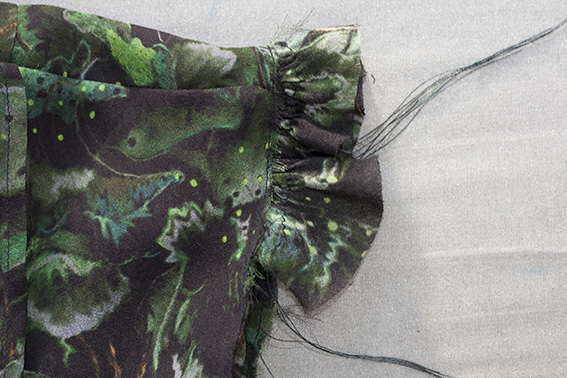

Just to complicate things, the sleeve head has a ruffle too! Gather it up with two rows of gathering stitches, then set in the sleeve, letting the ruffle extend by 2cm:

Sewing Sleeve Ruffle DP Studio Le 604 Shirt

Once again it was difficult to get everything looking even due to the bias parts, so I stuck with the homemade look!

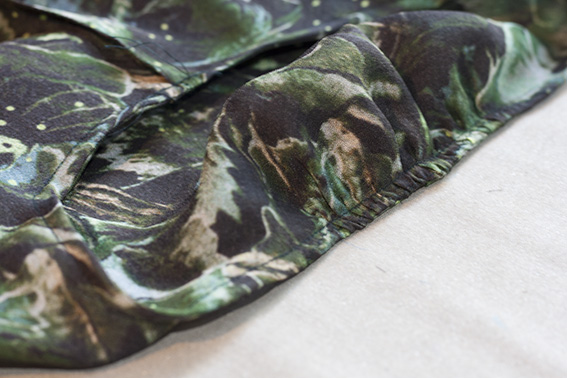

I used french seams for my armhole, so sewed the sleeve to the armhole wrong sides together, then right sides together:

Sewing Sleeve Ruffle DP Studio Le 604 Shirt

The result is a set in sleeve with a ruffle sticking out!

Sewing Sleeve Ruffle DP Studio Le 604 Shirt

With the sleeve ruffle angled towards the sleeve, centre the caterpillars over the sleeve seam, and sew down the centre of each ruffle by machine to attach.

Sewing Ruffle on DP Studio Le 604 Shirt

While on the subject of sleeves, here is a tutorial for the continuous bound sleeve placket. I sewed mine at 4mm instead of the 6mm referenced in the tutorial, for a narrower finish.

Sewing Ruffles on DP Studio Le 604 Shirt



6. Sewing the Collar Ruffle

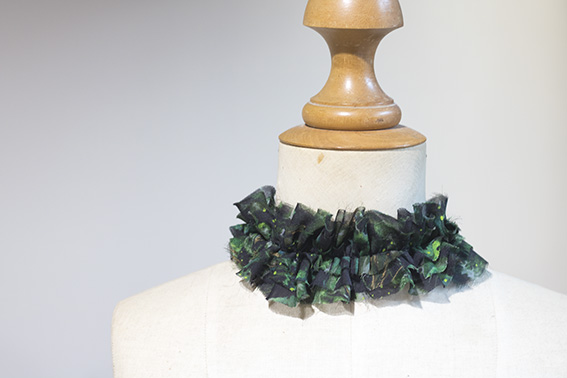

Sewing collar on DP Studio Le 604 Shirt

The collar ruffle is made in exactly the same way as the sleeve ruffles. I wanted to attach them to a self fabric tie but there was literally nothing left of my fabric after cutting, so I attached them to a piece of velvet ribbon instead.

Sewing collar on DP Studio Le 604 Shirt

Although I adore the look, I won’t wear the collar ruffle in reality. Too late anyway, as the cat has claimed it as her new toy…

tiggy

As long as she doesn’t get her paws on my shirt!

Hopefully some of these tips help others in sewing this style. The work is totally worth the effort!

Also, I’m very excited with my other DP Studio pattern (the flounce skirt) – I hope to have that photographed and blogged soon!
