Add Side Seam Splits To Your Trousers Too!

The other day I was asked how I did the side split hem on my black stretch capris, and as quite a few of you liked this design feature I’ve done a quick tutorial.  This is for you Liza Jane!  It is a handy trick to know, because you can also use it on the hems of sleeves and tops too.

How to add Hem Splits to your Trousers2

The first step is to establish the following:

  • your finished length, or hemline
  • depth of the split (mine was 4cm)
  • hem allowance (this needs to be 1-2cm greater than the depth of the split, mine was about 6cm)

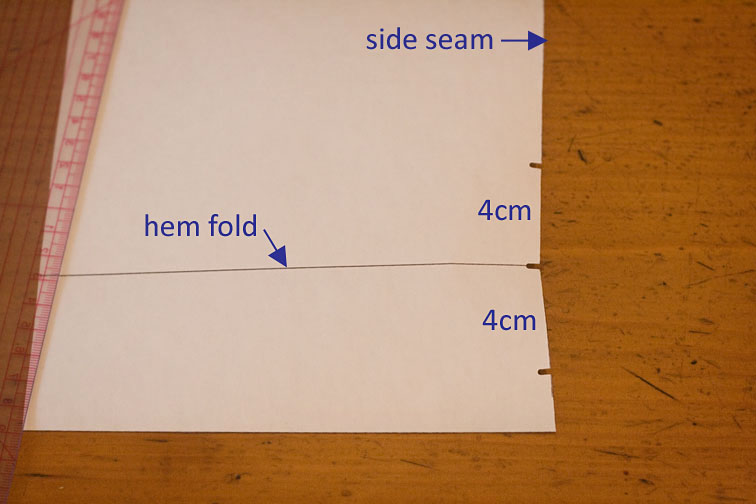

To the side seam of your pattern, add three notches:

  • one on the hem fold
  • one above the hem fold and one below the hem fold, to mark the depth of the split, ie 4cm

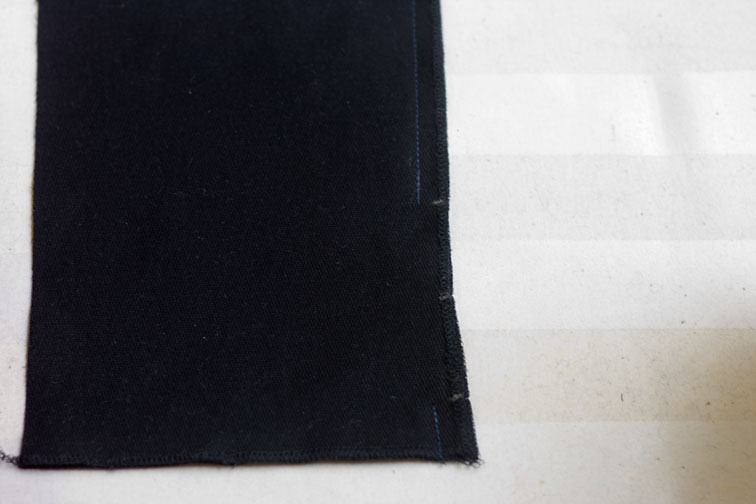

Sew the side seam, but leave it open between the upper and lower notches, backtacking at the ends of your stitching:

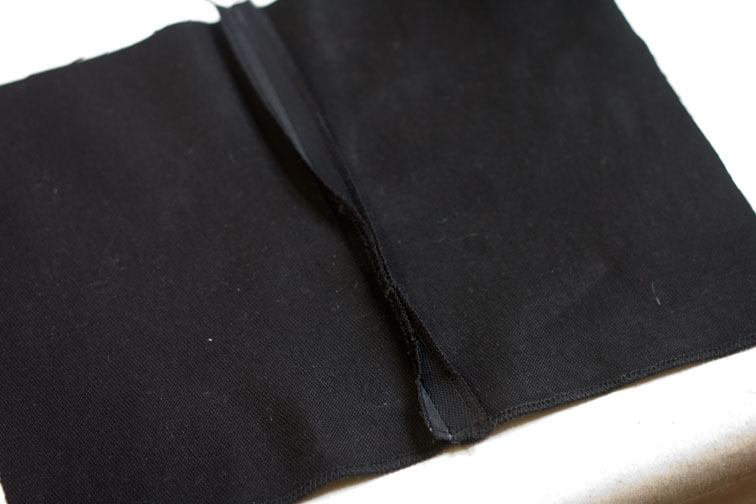

Press the seam allowances open either side of the notches…

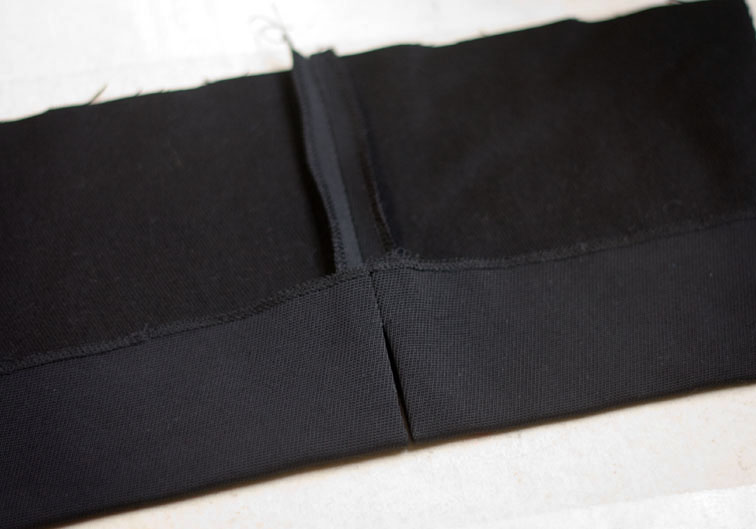

…then fold the hem up along the hemline (don’t press the hem until you’ve finished)

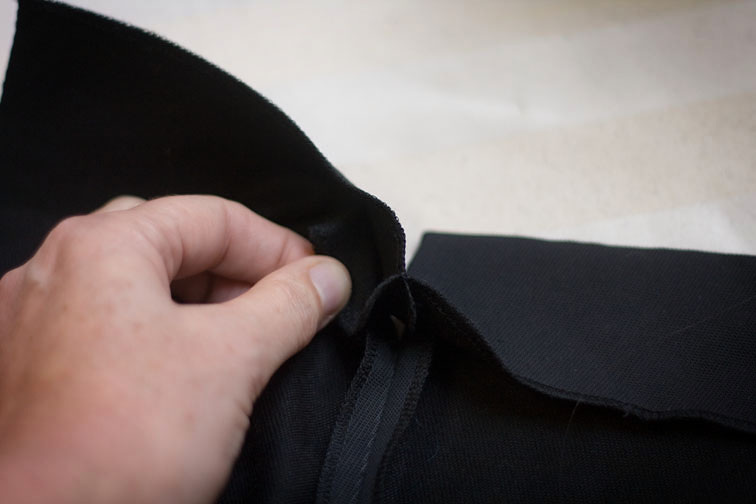

Now reach into the hem and pinch together the seam allowances inside…

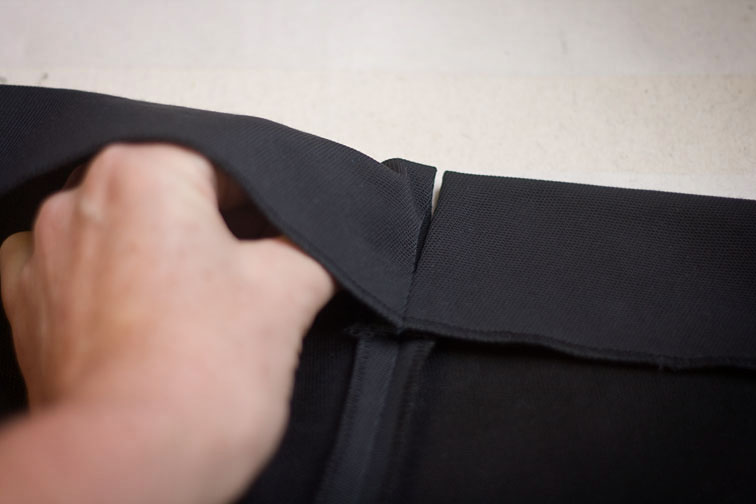

…and pull them out ready to sew them together in that position:

You should have one seam allowance folded at the hem notch with right sides together.

Ensure the hem notch is on the foldline, and that the two split notches match:

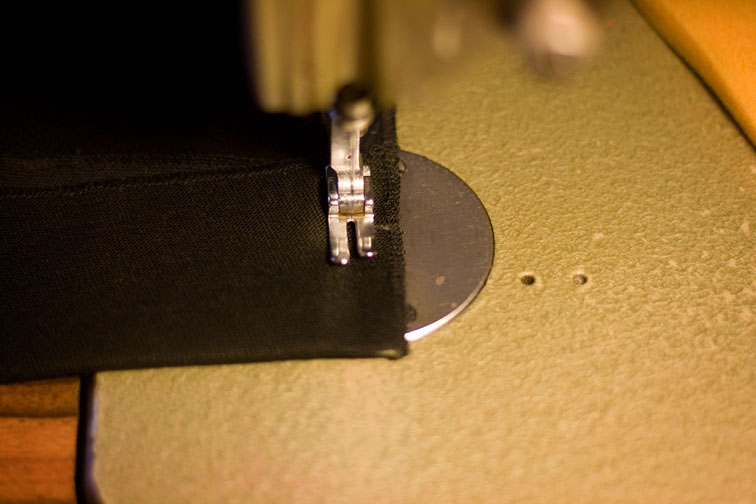

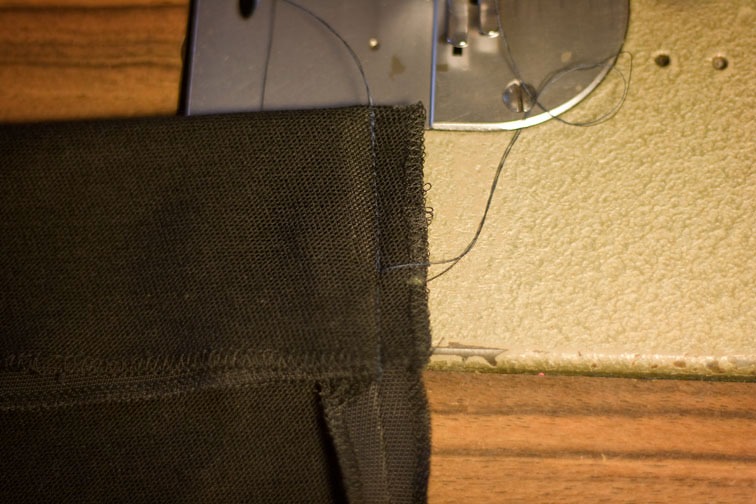

Sew the seam allowances together on this side of the split, between the notches:

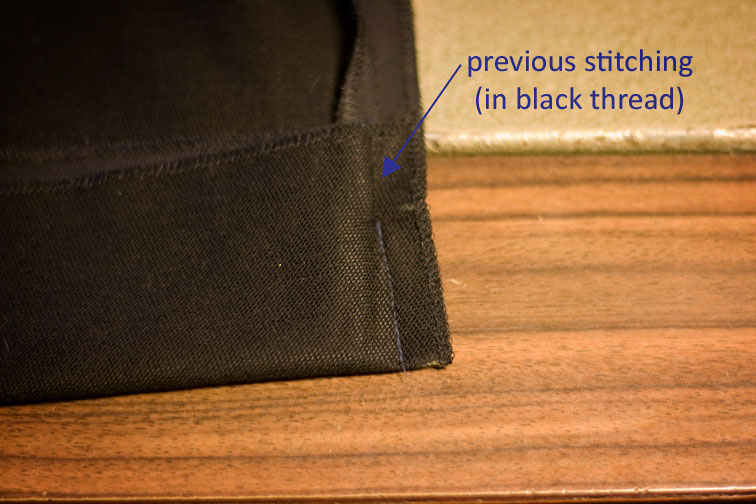

You have now enclosed the part of the seam you left open earlier:

Turn through to the right side, and repeat for the other side of the split:

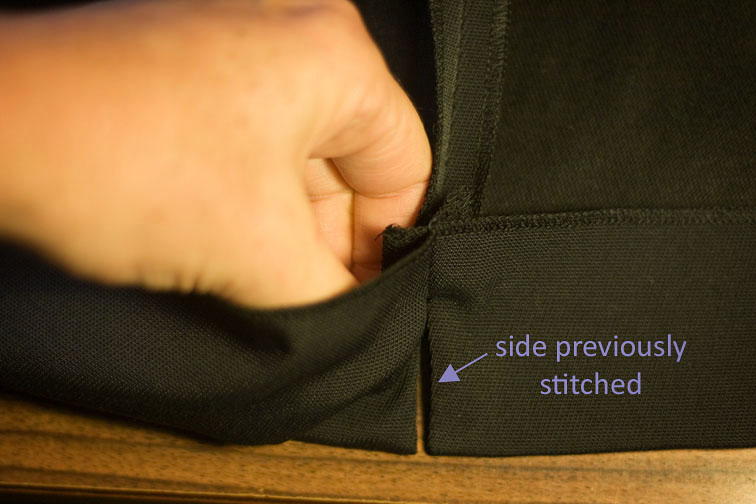

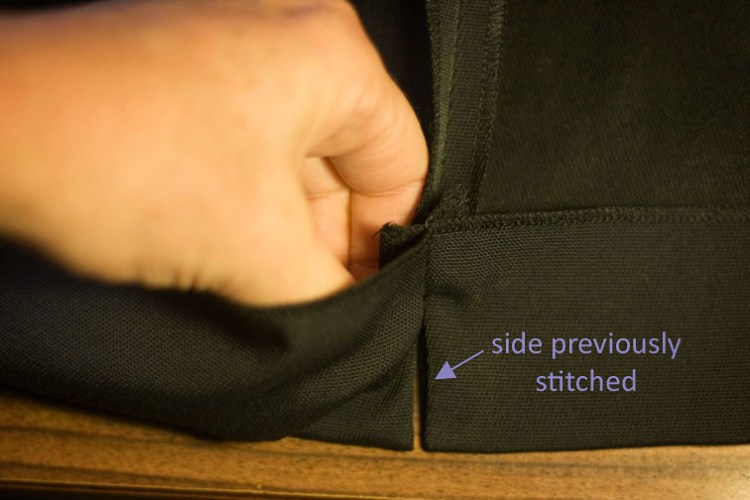

Pinch the seam allowances together, pull through, and sew:

If you’ve done everything accurately, both sides of the split should be the same length (mine is about 1mm out!)

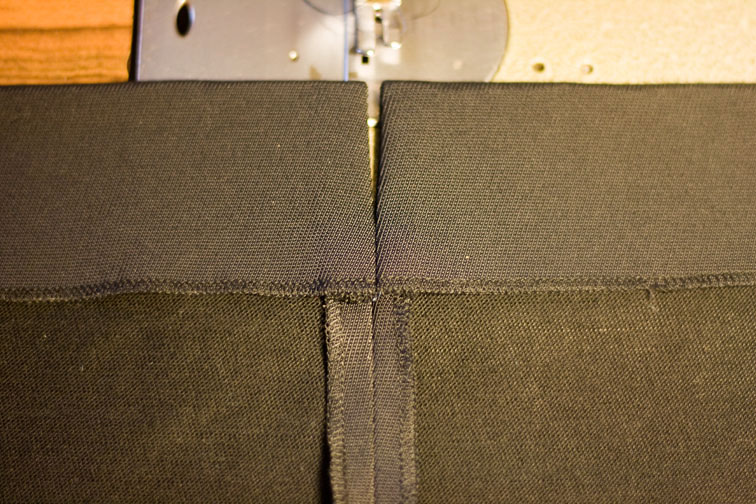

This is the inside:

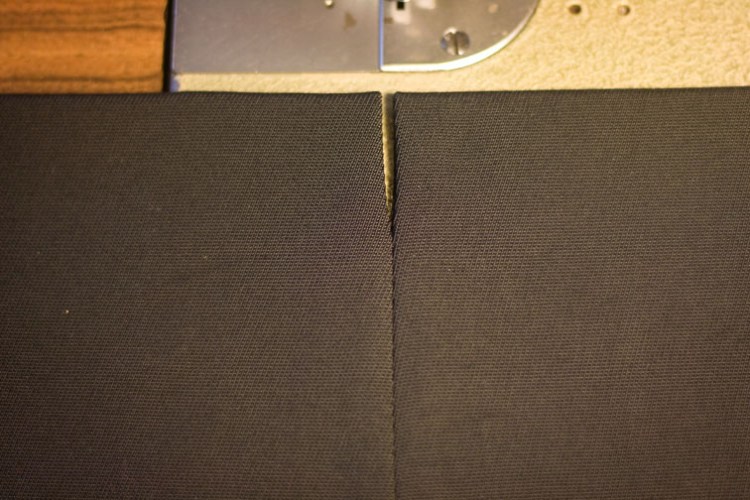

And this is the outside:

Now you sew the hem as per normal – I machined the hem on my trousers, but you can do it by hand for a more tailored look.

Happy sewing, and don’t forget to pin for later!
